Offer for the mechanical industry

MACHINE INDUSTRY

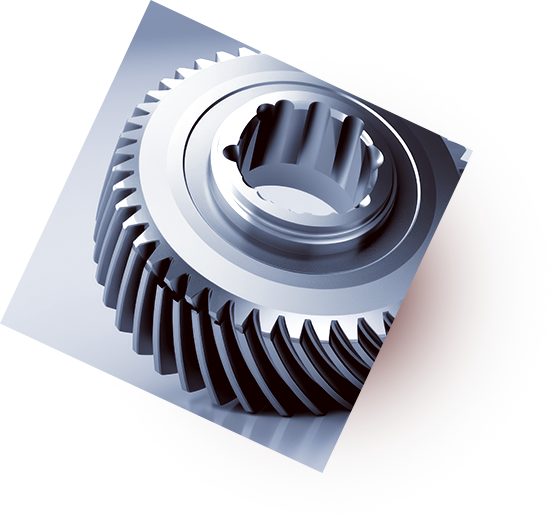

We produce forgings that are used to make, among others: elements for highly loaded drive gears - gears, shafts. Our forgings are used to make molds and tools that participate in various technological processes.

Call us to order

Write about your order

Bars

Round bars

Production range:

Diameter: 155 – 900 mm
Max. length: 10500 mm
Weight: 200 – 24000 kg

Square bars

Production range:

Minimum cross-sectional dimensions: 150 x 150 mm
Maximum cross-sectional dimensions: 800 x 800 mm
Max. length: 6000 mm
Weight: 200 – 16000 kg

Rectangular bars

Production range:

Minimum transverse dimensions: 150 x 100 mm
Maximum transverse dimensions: 800 x 800 mm
Length max. 6000 mm
Weight: 200 – 16000 kg

Sales department

Rolled Rings

Production range:

Outside diameter: 700 – 4000 mm
Inside diameter: 500 – 3800 mm
Wall thickness: 50 - 500 mm
Height: 50 - 1000 mm
Weight: 200 - 8000 kg

Sales department

Forged rings

Forged hole rings

Production range:

Outside diameter: 600 – 2500 mm
Inside diameter: 250 – 2000 mm
Height: 100 - 800 mm
Weight: 200 - 10000 kg

Sales department

Tubes

Production range:

Outside diameter max. 1300 mm
Inside diameter: 250 – 1000 mm
Max. length: 3500 mm
Weight: 200 - 15000 kg

Sales department

Discs and Punched discs

Production range:

Outside diameter: 300 - 2300 mm
Inside diameter: 150 – 350 mm
Height: 50 - 1300 mm
Weight: 200 - 12000 kg

Sales department

Blocks and plates

Production range:

Minimum cross-sectional dimensions: 250 x 150 mm
Maximum cross-sectional dimensions: 1500 x 1500 mm
Height: 50 - 1500 mm
Weight: 200 – 12000 kg

Sales department

Shafts

Propeller shafts, intermediate shafts, generator shafts, flanged shafts, rudder stocks.

Production range:

Max. diameter: 1300 mm
Max. length: 10500 mm
Weight: 200 – 24000 kg

Sales department

Shape forgings

Dimensions of forgings according to technical agreements with the customer.
