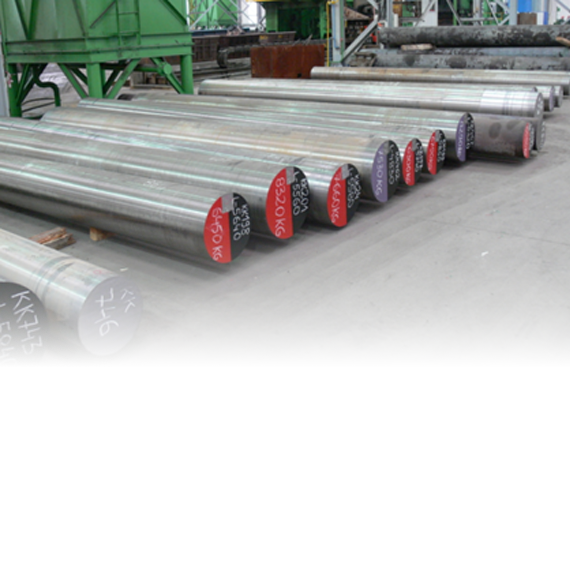

Round bars

Production range:

• Diameter: 155 – 900 mm
• Max. length: 10500 mm
• Weight: 200 – 24000 kg

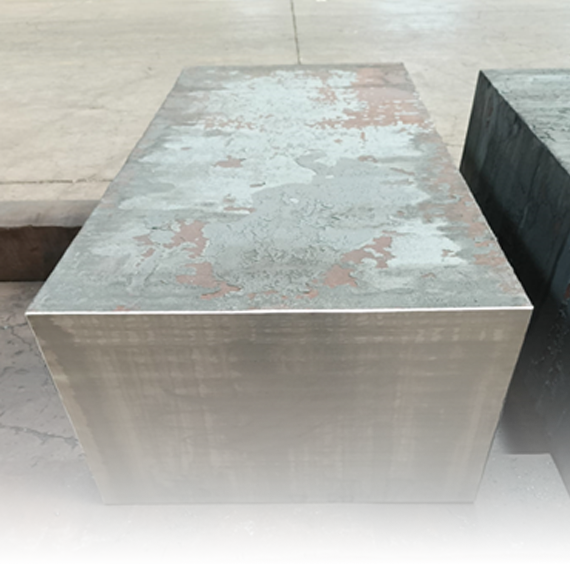

Square bars

Production range:

• Minimum cross-sectional dimensions: 150 x 150 mm
• Maximum cross-sectional dimensions: 800 x 800 mm
• Max. length: 6000 mm
• Weight: 200 – 16000 kg

Rectangular bars

Production range:

• Minimum transverse dimensions: 150 x 100 mm
• Maximum transverse dimensions: 800 x 800 mm
• Length max. 6000 mm
• Weight: 200 – 16000 kg

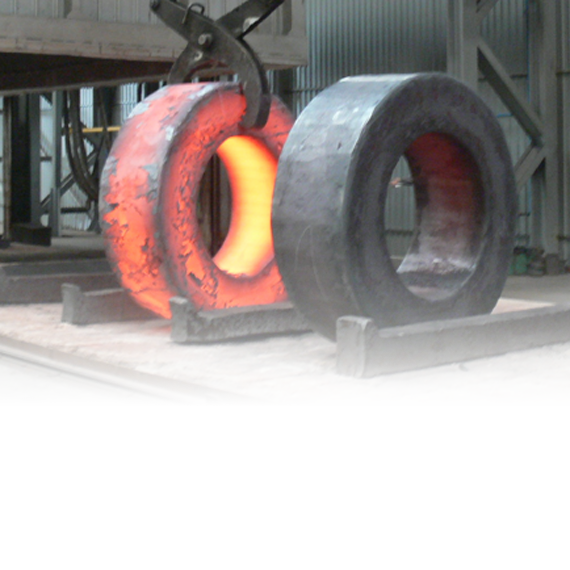

Production range:

• Outside diameter: 700 – 4000 mm
• Inside diameter: 500 – 3800 mm
• Wall thickness: 50 - 500 mm
• Height: 50 - 1000 mm
• Weight: 200 - 8000 kg

Production range:

• Outside diameter: 600 – 2500 mm
• Inside diameter: 250 – 2000 mm
• Height: 100 - 800 mm
• Weight: 200 - 10000 kg

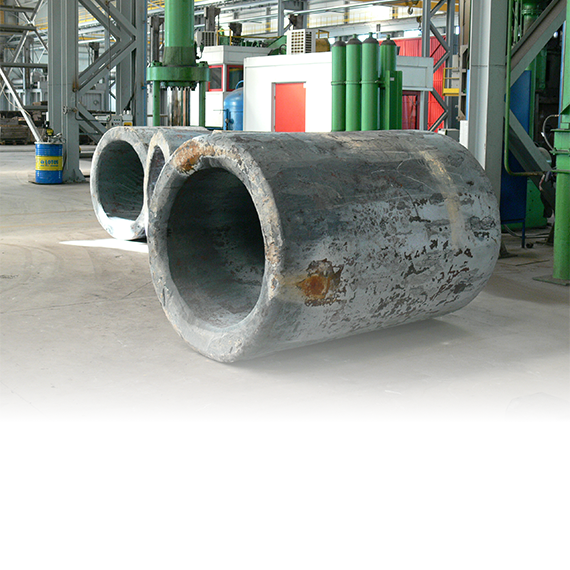

Production range:

• Outside diameter max. 1300 mm
• Inside diameter: 250 – 1000 mm
• Max. length: 3500 mm
• Weight: 200 - 15000 kg

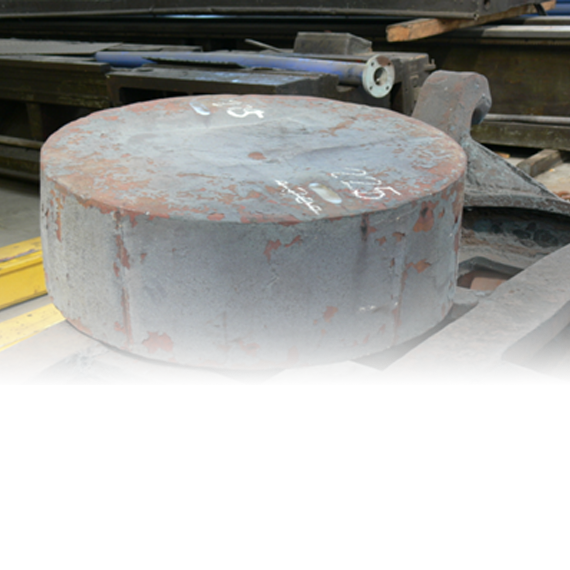

Production range:

• Outside diameter: 300 - 2300 mm
• Inside diameter: 150 – 350 mm
• Height: 50 - 1300 mm
• Weight: 200 - 12000 kg

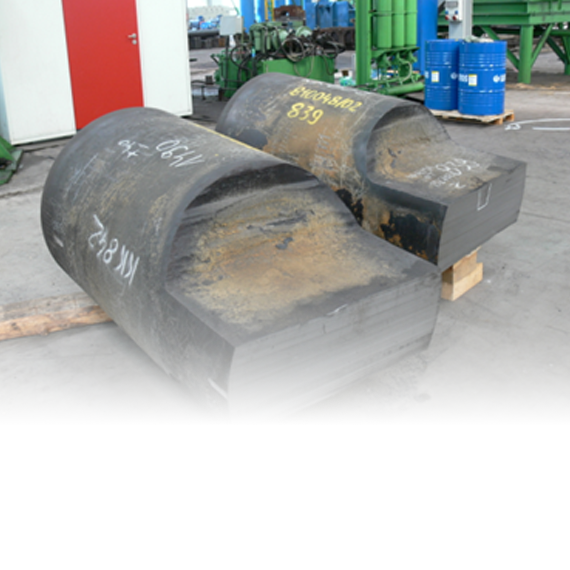

Production range:

• Minimum cross-sectional dimensions: 250 x 150 mm
• Maximum cross-sectional dimensions: 1500 x 1500 mm
• Height: 50 - 1500 mm
• Weight: 200 – 12000 kg

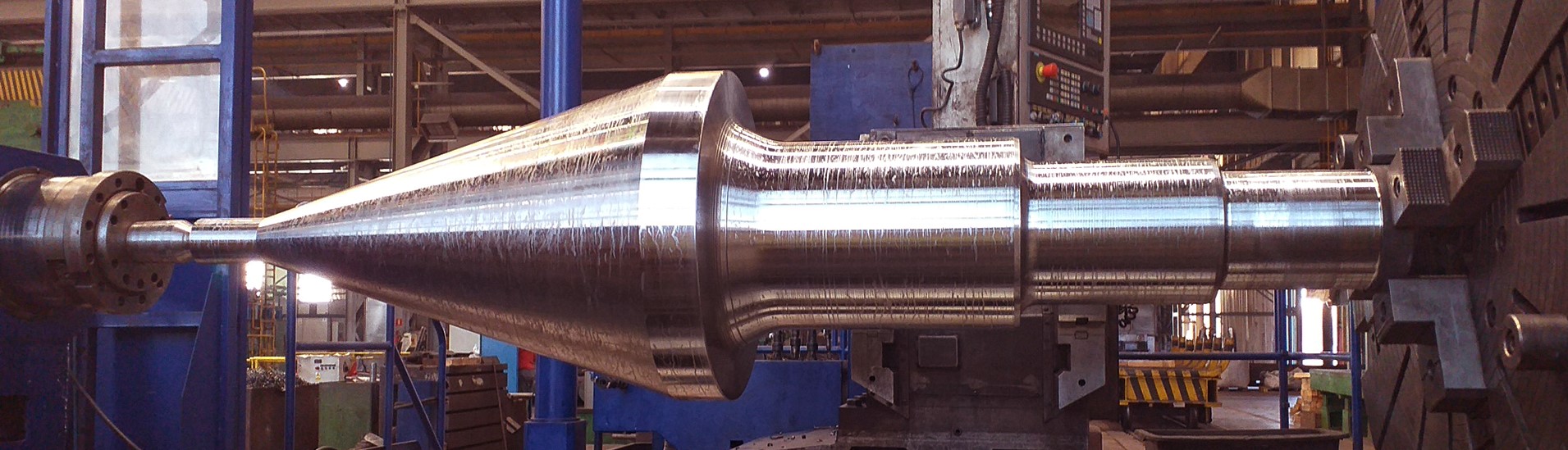

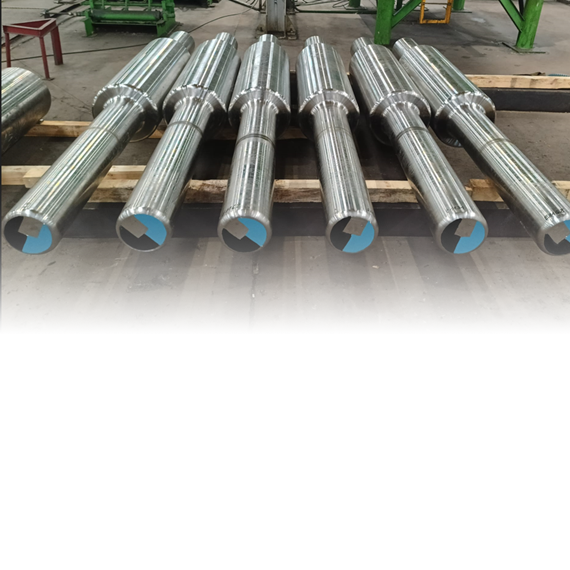

Propeller shafts, intermediate shafts, generator shafts, flanged shafts, rudder stocks.

Production range:

• Max. diameter: 1300 mm
• Max. length: 10500 mm
• Weight: 200 – 24000 kg

Dimensions of forgings according to technical agreements with the customer.
